| Lifecycle Status |
PRODUCTION (Last Updated: 1 month ago) |
| Factory Lead Time |
8 Weeks |
| Mounting Type |
Surface Mount |

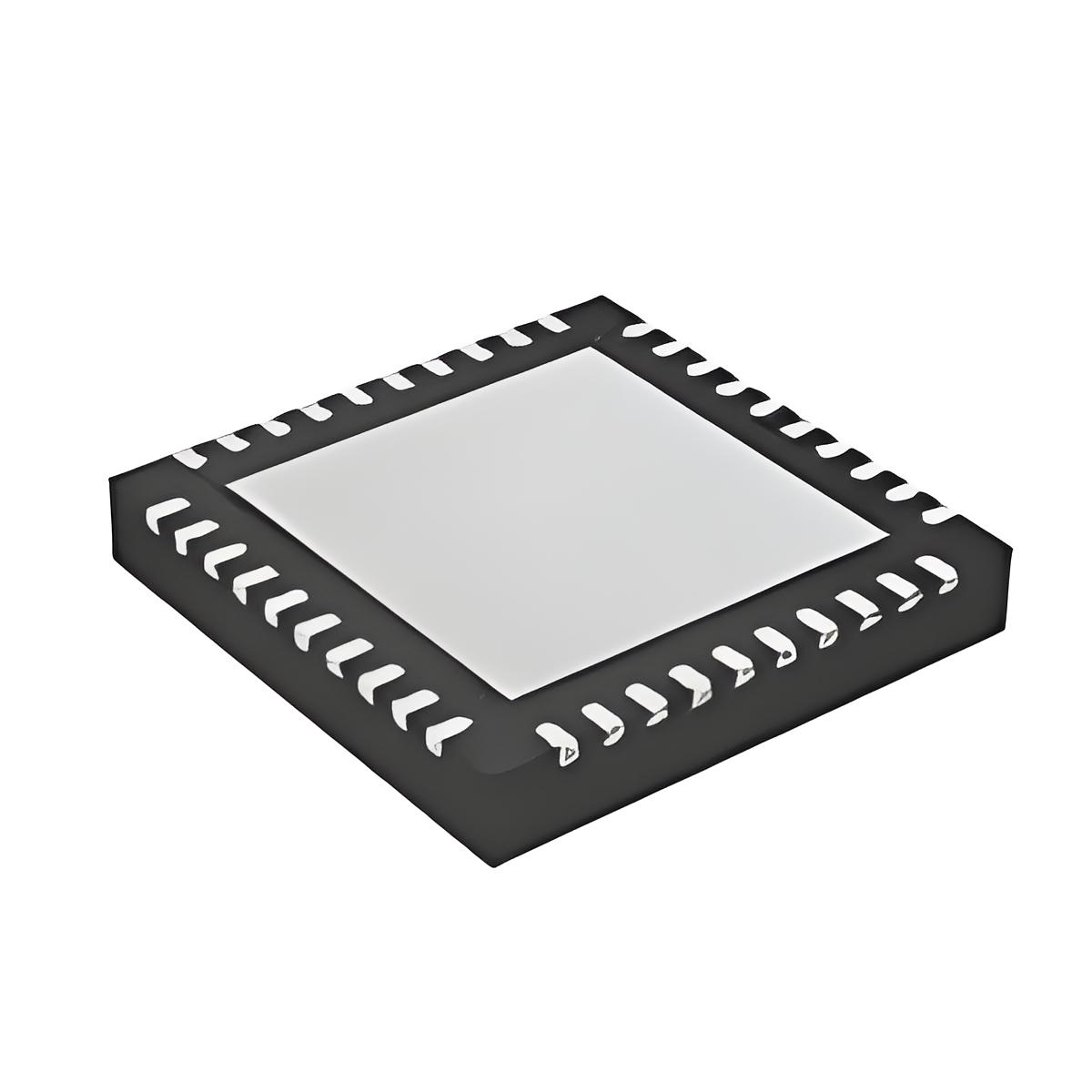

| Package / Case |
40-VFQFN Exposed Pad, CSP |
| Number of Pins |
40 |
| Operating Temperature |
-40°C~85°C |
| Packaging |
Tray |
| JESD-609 Code |
e3 |
| Lead Free Code |
no |
| Part Status |
Active |
| Moisture Sensitivity Level (MSL) |
3 (168 Hours) |
| ECCN Code |
EAR99 |
| Terminal Finish |
Matte Tin (Sn) |
| Application |
SONET; SDH |
| Voltage – Supply |
1.71V~3.465V |
| Peak Reflow Temperature (°C) |
260 |
| Number of Functions |
1 |
| Supply Voltage |
3.3V |
| Terminal Pitch |
0.5mm |
| Frequency |
1.25GHz |
| Time @ Peak Reflow Temperature – Max (s) |
30 |
| Base Part Number |
AD9557 |
| Output Types |
CMOS, HSTL, LVDS |
| Pin Count |
40 |
| Number of Outputs |
4 |
| Interface |
I2C, SPI |
| Number of Circuits |
1 |
| Supply Current |
162mA |
| Logic Function |
Translator |
| Inputs |
CMOS, LVDS, LVPECL |
| Ratio – Input:Output |
2:2 |
| Phase Locked Loop |
Yes |
| Differential – Input:Output |
Yes/Yes |
| Communication IC Type |
ATM/SONET/SDH TRANSMITTER |
| Primary Purpose |
Ethernet, SONET/SDH |
| Height |
950μm |
| Length |
6.1mm |
| Width |
5.85mm |
| SVHC Compliance |
No SVHC |
| Radiation Hardening |
None |
| RoHS Status |
ROHS3 Compliant |
| Lead Free |
Lead Containing |
