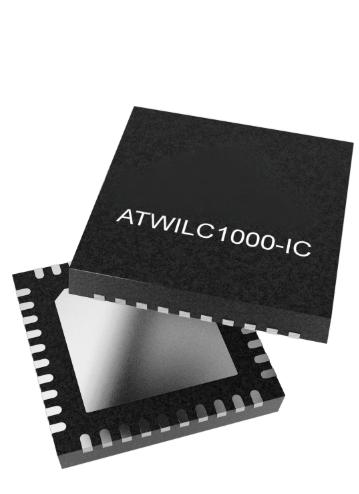

ATWILC1000-IC IEEE 802.11 b/g/n IoT Link Controller SoC

描述

Parameter	Specification
Concurrent Mode (STA / AP)	Yes
Enterprise Security	Yes
External PA Control	No
Frequency Range	2.4
Operating Temp (°C) Min	-40
Operating Temp (°C) Max	85
Operating Voltage (V) Min	2.7
Operating Voltage (V) Max	3.6
Packages	VQFN
Pin Count	40
Power Down Mode Current Consumption (μA)	1.25
RX Current Consumption (mA)	85
TX Current Consumption (mA)	186
RX Sensitivity (dBm)	-94
Wi – Fi Spec	802.11 b/g/n
SRAM (KB)	224
Sleep Mode Current Consumption (μA)	390
SoftAP Client Count	8
Supported Host OS	Linux,FreeRTOS
TX Output Power (dBm)	18.9
Downlink Throughput (Mbps)	28
Uplink Throughput (Mbps)	20
Wi – Fi Security	WPA, WPA2, WEP
Wireless Technology	Wi – Fi
CPU	32 – bit Cortus APS 3
Device Type	SoC
Encryption	WEP, WPA – TKIP, WPA2, CCMP – AES

Category	Details
Wi-Fi Spec	IEEE 802.11 b/g/n (1×1) for up to 72 Mbps
Compatibility	Compatible with Wi-Fi 6/7 2.4 GHz band
Integrated Components	Integrated PA and T/R Switch
Sensitivity & Range	Superior Sensitivity and Range via advanced PHY signal processing
Wi-Fi Modes	Wi-Fi Direct, station mode and Soft-AP support
Security	Supports IEEE 802.11 WEP, WPA2 Security Enterprise
Memory Management	On – chip memory management engine to reduce host load
Interfaces	SPI and SDIO host interfaces
