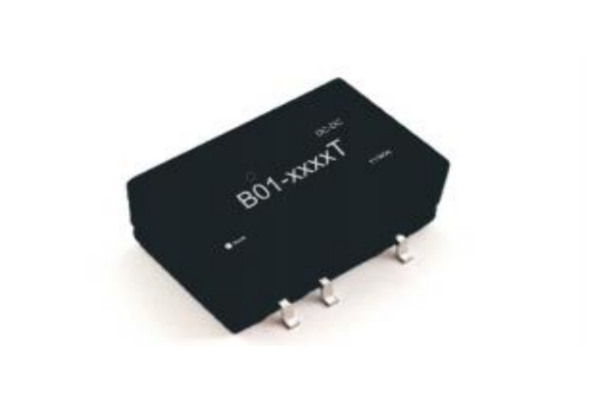

Constant voltage 1W SMD package isolated non-regulated output series

描述

Product Features	Specifications
Package Type	Small SMD
Temperature Range	-40℃ ~ +105°C
Isolation Voltage	1500VDC / 3000VDC
Full-Load Efficiency	88% (typical)
Pin Standard	International standard pin configuration
Application Fields	Power, industrial control, communications, Internet of Things (IoT), automotive, etc.

Product Model	Input Voltage Range	Output Voltage	Min/Max Output Current	Full – Load Efficiency (η)
Left Table
B01 – 0303T	3.3VDC (2.97 – 3.63V)	3.3VDC	30/300mA	80%
B01 – 0305T		5VDC	20/200mA	82%
B01 – 0503T	5VDC (4.5 – 5.5V)	3.3VDC	30/300mA	82%
B01 – 0505T		5VDC	20/200mA	85%
B01 – 0512T		12VDC	8/84mA	86%
B01 – 0515T		15VDC	6/67mA	86%
B01 – 0524T		24VDC	4/42mA	87%
A01 – 0505T	5VDC (4.5 – 5.5V)	±5VDC	±10/±100mA	82%
A01 – 0512T		±12VDC	±4/±42mA	83%
B01 – 1203T	12VDC (10.8 – 13.2V)	3.3VDC	30/300mA	82%
B01 – 1203T		3.3VDC	±20/±200mA	85%
B01 – 1212T		12VDC	8/84mA	86%
Right Table
B01 – 1215T	12VDC (10.8 – 13.2V)	15VDC	6/67mA	86%
B01 – 1224T		24VDC	4/42mA	88%
B01 – 1505T	15VDC (13.5 – 16.5V)	5VDC	20/200mA	86%
B01 – 1512T		12VDC	8/84mA	87%
B01 – 1515T		15VDC	6/67mA	88%
B01 – 2403T	24VDC (21.6 – 26.4V)	3.3VDC	30/300mA	82%
B01 – 2405T		5VDC	20/200mA	85%
B01 – 2412T		12VDC	8/84mA	87%
B01 – 2424T		24VDC	4/42mA	88%
A01 – 2405T	24VDC (21.6 – 26.4V)	±5VDC	±10/±100mA	85%
A01 – 2415T		±15VDC	±3/±34mA	88%

Product Model	Input Voltage Range	Output Voltage	Min/Max Output Current	Full – Load Efficiency (η)
F01 – 0303T	3.3VDC (2.91 – 3.63V)	3.3VDC	30/300mA	80%
F01 – 0305T		5VDC	20/200mA	82%
F01 – 0503T	5VDC (4.5 – 5.5V)	3.3VDC	30/300mA	82%
F01 – 0505T		5VDC	20/200mA	85%
F01 – 0512T		12VDC	8/84mA	86%
F01 – 0515T		15VDC	6/67mA	86%
F01 – 0524T		24VDC	4/42mA	87%
F01 – 1203T	12VDC (10.8 – 13.2V)	3.3VDC	30/300mA	85%
F01 – 1203T		3.3VDC	20/200mA	85%
F01 – 1212T		12VDC	8/84mA	86%
F01 – 1215T	12VDC (10.8 – 13.2V)	15VDC	6/67mA	86%
F01 – 1224T		24VDC	4/42mA	88%
F01 – 1505T	15VDC (13.5 – 16.5V)	5VDC	20/200mA	85%
F01 – 1512T		12VDC	8/84mA	87%
F01 – 1515T		15VDC	6/67mA	88%
F01 – 2403T	24VDC (21.6 – 26.4V)	3.3VDC	30/300mA	82%
F01 – 2405T		5VDC	20/200mA	85%
F01 – 2412T		12VDC	8/84mA	87%
F01 – 2415T		15VDC	6/67mA	87%
F01 – 2424T		24VDC	4/42mA	88%
