| Factory Lead Time |
20 Weeks |
| Chassis |
Surface Mount |
| Mounting Type |
Surface Mount |

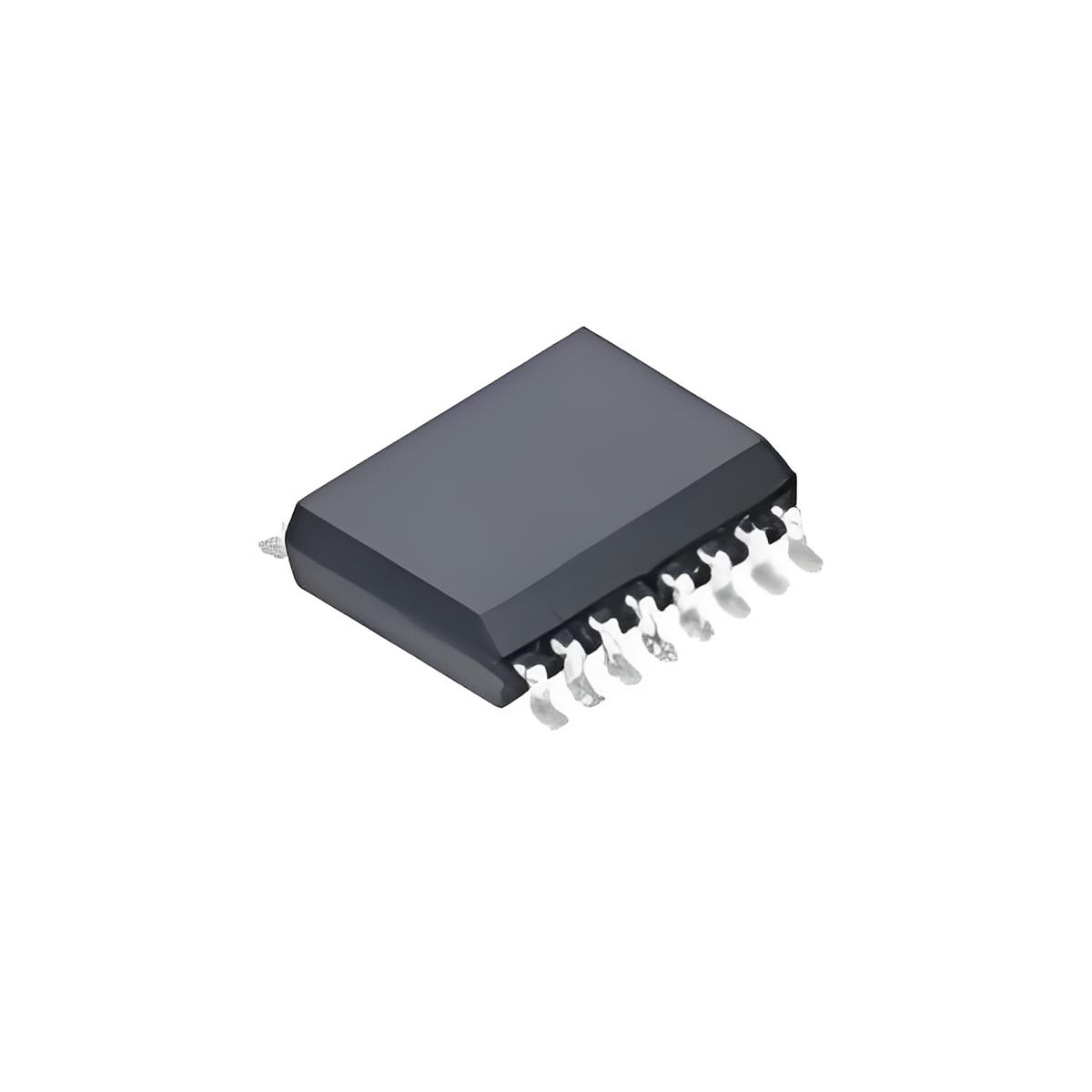

| Package/Case |
16-SOIC (0.295, 7.50mm Width) |
| Number of Pins |
16 |
| Current Sensing |
12.5A |
| Operating Temperature |
-40°C~125°C |
| Packaging |
Tape & Reel (TR) |
| Published |
2010 |
| JESD-609 Code |
e3 |
| Lead-Free Code |
yes |
| Part Status |
Last Time Buy |
| Moisture Sensitivity Level (MSL) |
3 (168 Hours) |
| Number of Terminals |
16 |
| Terminal Surface Treatment |
Matte Tin (Sn) |
| Voltage – Supply |
3V~5.5V |
| Terminal Position |
DUAL |
| Terminal Form |
鸥翼 (Gull Wing) |
| Peak Reflow Temperature (°C) |
260 |
| Number of Functions |
1 |
| Supply Voltage |
5V |
| Frequency |
DC~120kHz |
| Time @ Peak Reflow Temperature – Max (s) |
40 |
| Output |
Ratiometric, Voltage |
| Pin Count |
16 |
| Qualification Status |
Unqualified |
| Output Type |
Analog |
| Supply Voltage – Maximum (Vsup) |
5.5V |
| Supply Voltage – Minimum (Vsup) |
3V |
| Number of Channels |
1 |
| Polarization |
Bidirectional |
| Maximum Supply Current |
14.5mA |
| Quiescent Current |
11mA |
| Accuracy |
±2.2% |
| Response Time |
4μs |
| Bandwidth |
120 kHz |
| Sensor Type |
Hall Effect, Open Loop |
| Linearity |
±0.25% |
| Used For Measurement |
AC/DC |
| Sensitivity (mV/A) |
56 mV/A |
| Seat Height (Max.) |
2.65mm |
| Reach SVHC |
No SVHC |
| RoHS Status |
ROHS3 Compliant |
