| Lifecycle Status |
PRODUCTION (Last Updated: 1 month ago) |
| Factory Lead Time |
8 Weeks |
| Chassis |
Surface Mount |
| Mounting Type |
Surface Mount |

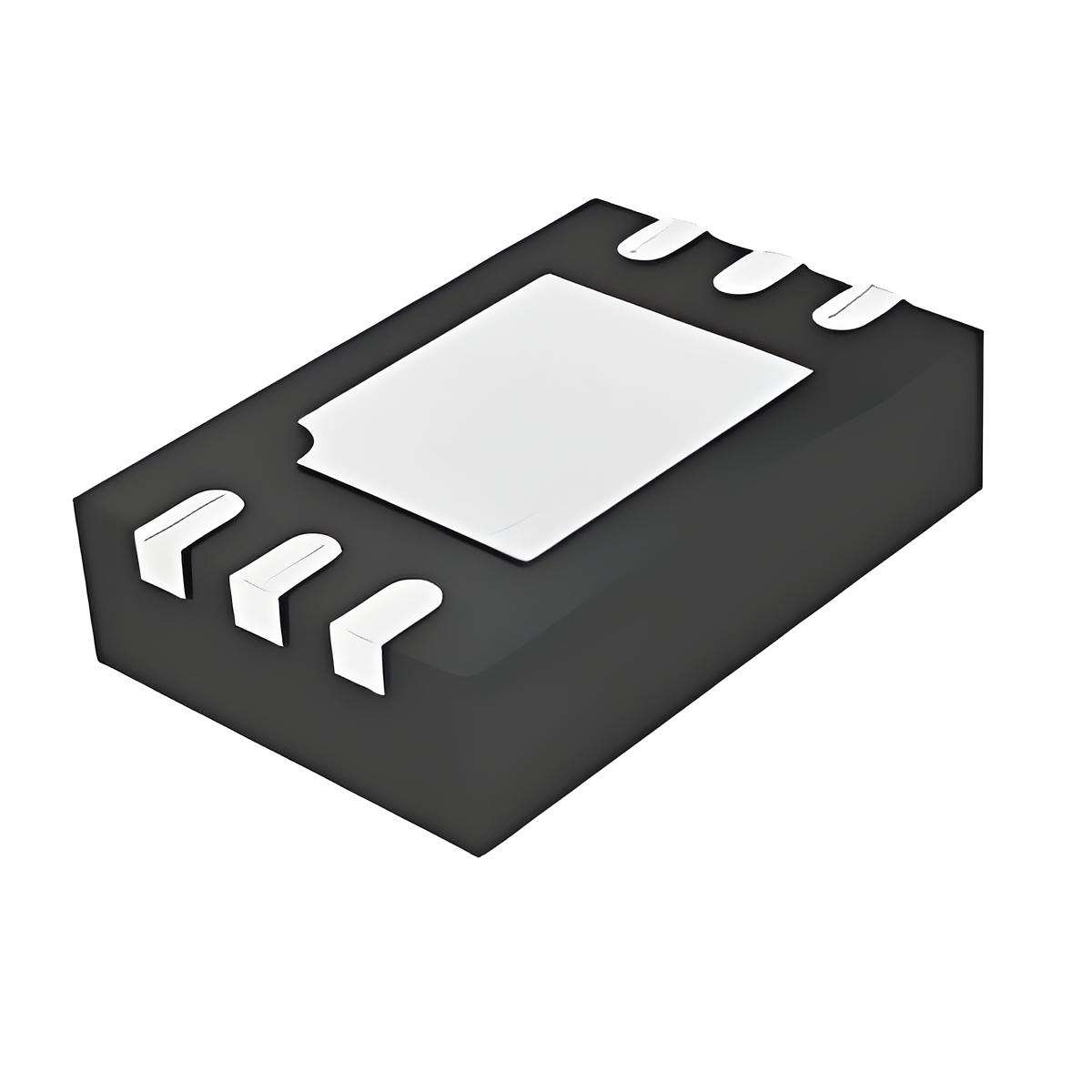

| Package / Case |
6-WFDFN Exposed Pad |
| Number of Pins |
6 |
| Operating Temperature |
0°C~70°C |
| Packaging |
Tape & Reel (TR) |
| Series |
TimerBlox® |
| Published |
2011 |
| JESD-609 Code |
e3 |
| Part Status |
Active |
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
| Number of Terminations |
6 |
| ECCN Code |
EAR99 |
| Terminal Finish |
Matte Tin (Sn) |
| Voltage – Supply |
2.25V~5.5V |
| Terminal Position |
DUAL |
| Peak Reflow Temperature (°C) |
260 |
| Supply Voltage |
3.3V |
| Terminal Pitch |
0.5mm |
| Time @ Peak Reflow Temperature – Max (s) |
30 |
| Base Part Number |
LTC6994 |
| Function |
Programmable |
| Power Supply Voltage – Maximum (Vsup) |
5.5V |
| Power Supply |
2.5/5V |
| Power Supply Voltage – Minimum (Vsup) |
2.25V |
| Output Polarity |
TRUE |
| Logic IC Type |
Silicon Delay Line |
| Maximum Supply Current (ICC) |
0.2mA |
| Taps / Steps |
8 |
| Number of Independent Delays |
1 |
| Programmable Delay Line |
YES |
| Total Delay Available |
1μs ~ 33.6s |
| Height |
750μm |
| Length |
3mm |
| Width |
2mm |
| SVHC Compliance |
No SVHC |
| Radiation Hardening |
None |
| RoHS Status |
ROHS3 Compliant |
