| Factory Lead Time |
21 Weeks |
| Contact Plating |
Gold |
| Chassis |
Through Hole |
| Mounting Type |
BOARD |
| Housing Material |
Polyester |
| Mounting Option 1 |
LOCKING |
| Contact Materials |
Brass |
| Country of Origin |
MY |
| Voltage Rating (AC) |
250 V |
| Body Orientation |
Right Angle |
| Termination Method |
Solder |
| Base/Housing Material |
Polyester |
| Mounting |
Through Hole |
| Voltage Rating Max |
250VAC |
| Number of Contact Rows |
3 |
| Product Depth (mm) |
18.08mm |
| Contact Resistance Max |
20mohm |
| Operating Temp Range |
-55°C to 125°C |
| Mounting Styles |
Through Hole |
| Pitch (mm) |
2.54mm |
| Voltage, Rating |
250 VAC |
| Maximum Operating Temperature |
+125°C |
| Unit Weight |
0.485652 oz |
| Minimum Operating Temperature |
-55°C |
| Factory Pack Quantity |
500 |
| Part # Aliases |
0850030567 |
| Manufacturer |
Molex |
| Brand |
Molex |
| RoHS |
Details |
| Contact Finish Mating |
Not Specified |
| Body Length |
3.701 inch |
| Operating Temperature-Min |
-55 °C |
| Operating Temperature-Max |
125 °C |
| Rohs Code |
有 (Yes) |
| Manufacturer Part Number |
85003-0567 |
| Number of Rows Loaded |
3 |
| Part Life Cycle Code |
生命周期结束 (End of Life) |
| Samacsys Description |

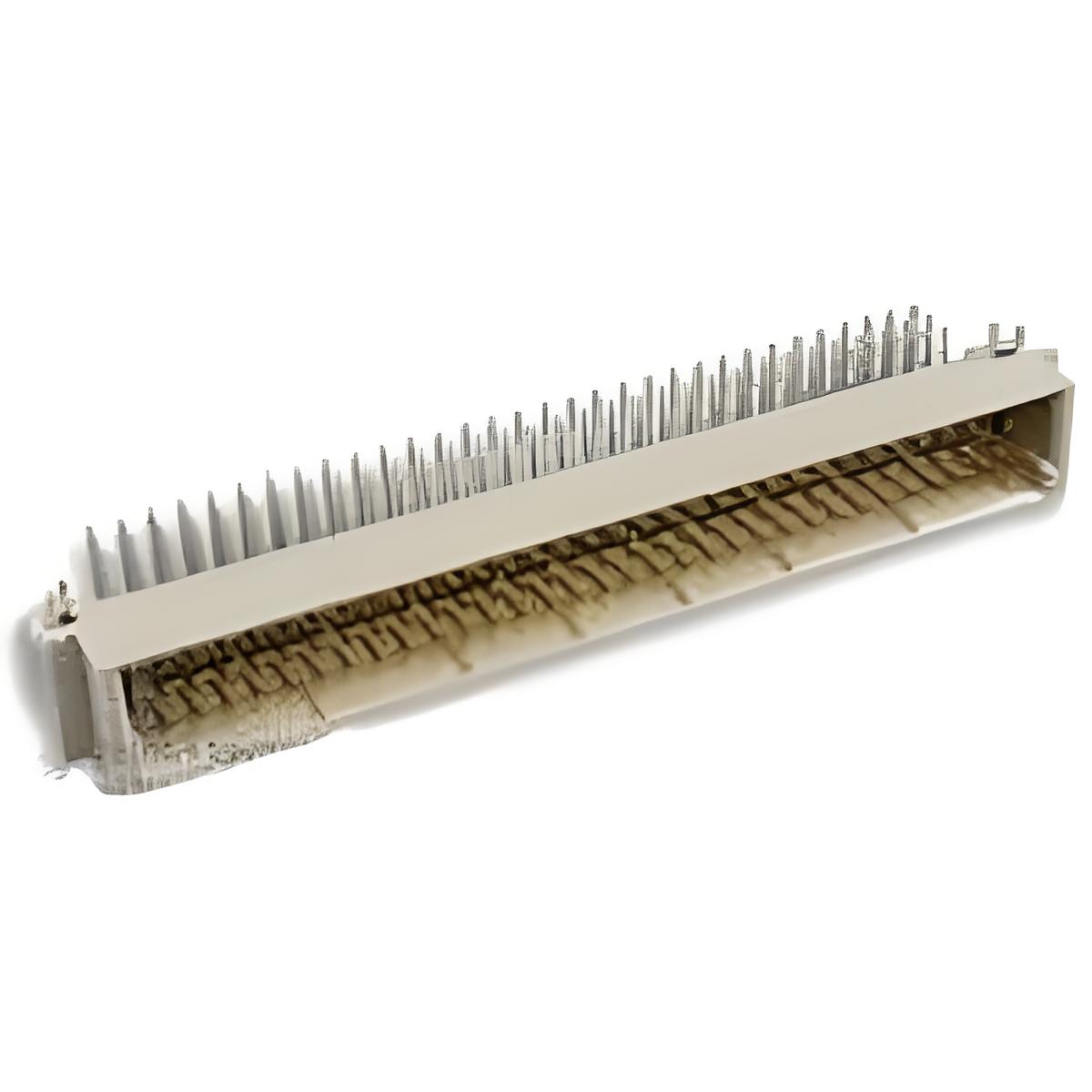

MOLEX – 85003-0567 – CONNECTOR, DIN 41612, HEADER, 96 POSITION, TH |
| Ihs Manufacturer |
MOLEX LLC |
| Risk Rank |
6.35 |
| 操作温度 (Operating Temperature) |
-55 to 125 °C |
| Packaging |
Tray |
| Series |
85003 |
| Lead Free Code |
有 (Yes) |
| Termination |
Solder |
| ECCN Code |
EAR99 |
| Connector Type |
板欧连接器 (Board Connector) |
| Type |
DIN 41612 |
| Number of Positions |
96 |
| Maximum Operating Temperature |
125 °C |
| Minimum Operating Temperature |
-55 °C |
| Number of Rows |
3 |
| Gender |
Male |
| Additional Features |
STANDARDS: DIN 41612; IEC 603-2 |
| HTS Code |
8536.69.40.40 |
| Subcategory |
背板连接器 (Backplane Connector) |
| MIL Compliance |
NO |
| DIN Standard Compliance |
YES |
| IEC Compliance |
YES |
| Filter Function |
NO |
| Mixed Contacts |
NO |
| Option |
GENERAL PURPOSE |
| Pitch |
2.54 mm |
| Total Number of Contacts |
96 |
| Orientation |
Right Angle |
| Terminal Spacing |
2.54 mm |
| Reach Compliance Code |
compliant |
| Rated Current |
1 A |
| Reference Standard |
UL, CSA |
| Terminal Style |
焊针 (Solder Pin) |
| Reliability |
COMMERCIAL |
| Number of PCB Rows |
3 |
| Thread Distance |
2.54 mm |
| Number of Connectors |
96 |
| PCB Contact Pattern |
RECTANGULAR |
| Mating Information |
MULTIPLE MATING PARTS AVAILABLE |
| Body Width |
0.437 inch |
| Contact Gender |
MALE |
| UL Flammability Rating |
94V-0 |
| Housing Color |
Gray |
| Body Depth |
0.712 inch |
| Rated Current (Signal) |
1 A |
| Contact Style |
SQ PIN-SKT |
| Contact Resistance |
20 mΩ |
| Insulation Resistance |
1000000000000 Ω |
| Mating Contact Spacing |
0.1 inch |
| Body / Housing Style |
RECEPTACLE |
| Number of Circuits |
96 |
| Terminal Type |
SOLDER |
| Polarizing Key |
极化外壳 (Polarized Housing) |
| PCB Contact Row Spacing |
2.54 mm |
| Durability |
400 Cycles |
| Mating Contact Row Spacing |
0.1 inch |
| Data Rate |
622 Mbps |
| Insulator Color |
GRAY |
| Product Category |
DIN 41612 Connectors |
| Number of Columns |
16 |
| Maximum Rated Current |
1/Contact(A) |
| Loaded Row Names |
A,B,C |
| Product |
Headers |
| Mounting Angle |
Right Angle |
| Terminal Length |
0.118 inch |
| Product Length |
94 mm |
| Product Length (mm) |
94mm |
| Plating Thickness |
24u inch |
| Product Height (mm) |
11.1mm |
| Radiation Hardening |
No |
| RoHS Status |
RoHS Compliant |
