| Chassis |
Through Hole |
| Package/Case |
10-DIP (0.209, 5.30mm) |
| Number of Pins |
10 |
| Power Dissipation (Max) |
40mW |
| Packaging |
Bulk |
| Published |
2008 |
| Size/Dimensions |
0.433 Hx0.276W x 0.197 D 11.00mmx7.00mmx5.00mm |
| JESD-609 Code |
e1 |
| Lead-Free Code |
yes |
| Part Status |
Obsolete |
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
| Terminal Finish |
Tin/Silver/Copper (Sn/Ag/Cu) |
| Maximum Operating Temperature |
75°C |
| Minimum Operating Temperature |
-25°C |
| Color |
Red |
| Number of Functions |
1 |
| Operating Supply Voltage |
2V |
| Element Configuration |
Common Cathode |
| Forward Current |
15mA |
| Test Current |
10mA |
| Luminous Intensity |
10 mcd |
| Wavelength – Peak |
650nm |

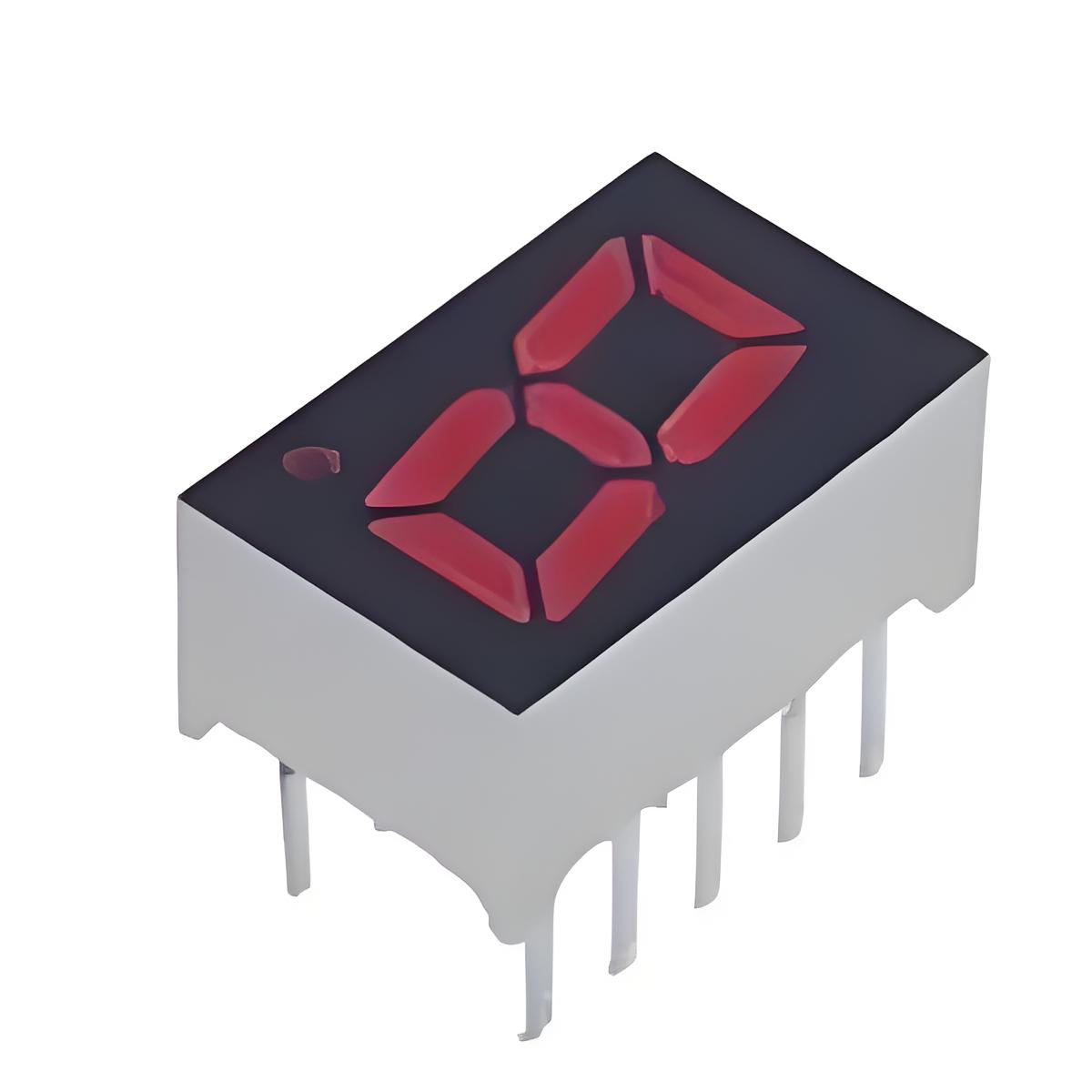

| Display Type |
7-Segment |
| Forward Voltage – Maximum |
2.8V |
| Number of Characters |
1 |
| Number of Segments |
7 |
| Digit/Letter Size |
0.31″ 8.00mm |
| Common Pin |
Common Cathode |
| Character Width |
4mm |
| Height |
10.9982mm |
| Viewing Area (Height) |
8mm |
| Character Height |
8mm |
| RoHS Status |
ROHS3 Compliant |
| Lead Free |
Lead Free |
