| Factory Lead Time |
16 Weeks |
| Mounting Type |
Surface Mount |

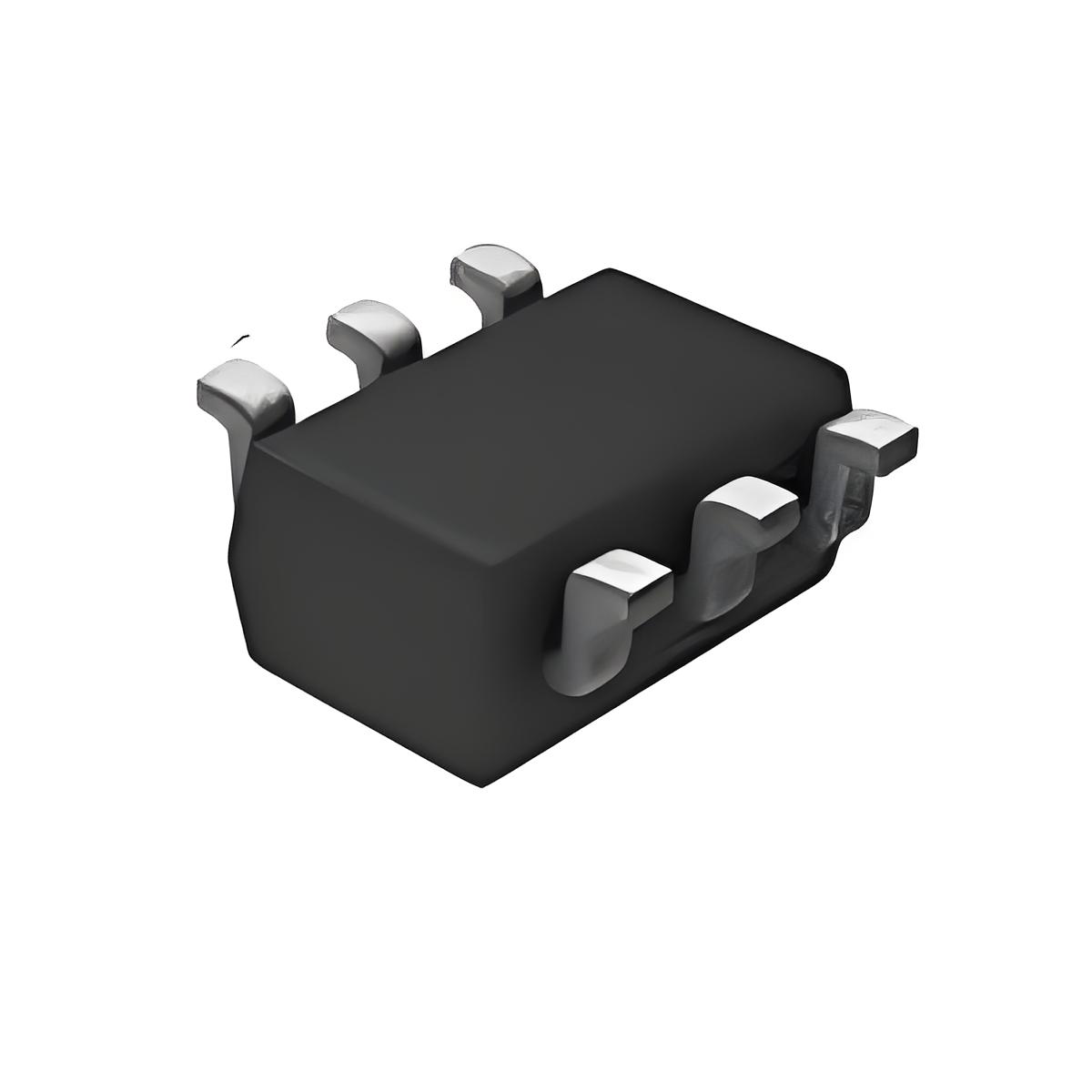

| Package / Case |
SOT-23-6 |
| Surface Mount |
YES |
| Number of Pins |
6 |
| Switching Frequency |
500kHz |
| Voltage Rated |
5.5V |
| Usage Level |
Industrial grade |
| Operating Temperature |
-40°C~85°C |
| Packaging |
Tape & Reel (TR) |
| Published |
2008 |
| JESD-609 Code |
e4 |
| Part Status |
Active |
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
| Number of Terminations |
6 |
| ECCN Code |
EAR99 |
| Terminal Finish |
Nickel/Palladium/Gold (Ni/Pd/Au) |
| Application |
Converter, PIC® Microcontrollers |
| Terminal Position |
DUAL |
| Terminal Form |
Gull Wing |
| Peak Reflow Temperature (°C) |
260 |
| Number of Functions |
1 |
| Terminal Pitch |
0.95mm |
| Time @ Peak Reflow Temperature – Max (s) |
40 |
| Base Part Number |
MCP1624 |
| Pin Count |
6 |
| Number of Outputs |
1 |
| Efficiency |
96 % |
| Output Type |
Adjustable |
| Maximum Output Current |
50mA |
| Operating Supply Voltage |
350mV |
| Input Voltage – Nom |
1.2V |
| Analog IC – Other Types |
Switching Regulator |
| Output Current |
50mA |
| Maximum Output Voltage |
5.5V |
| Voltage – Output |
2V~5.5V |
| Topology |
Boost |
| Minimum Input Voltage |
650mV |
| Control Mode |
CURRENT-MODE |
| Maximum Input Voltage |
5.5V |
| Control Technology |
Pulse Width Modulation |
| Minimum Output Voltage |
2V |
| Height |
1.2954mm |
| Length |
3.0988mm |
| Width |
1.8034mm |
| SVHC Compliance |
No SVHC |
| Radiation Hardening |
None |
| RoHS Status |
ROHS3 Compliant |
| Lead Free |
Lead Free |
