| Lifecycle Status |
ACTIVE (Last Updated: 3 days ago) |
| Factory Lead Time |
6 Weeks |
| Mounting Type |
Surface Mount |
| Package / Case |

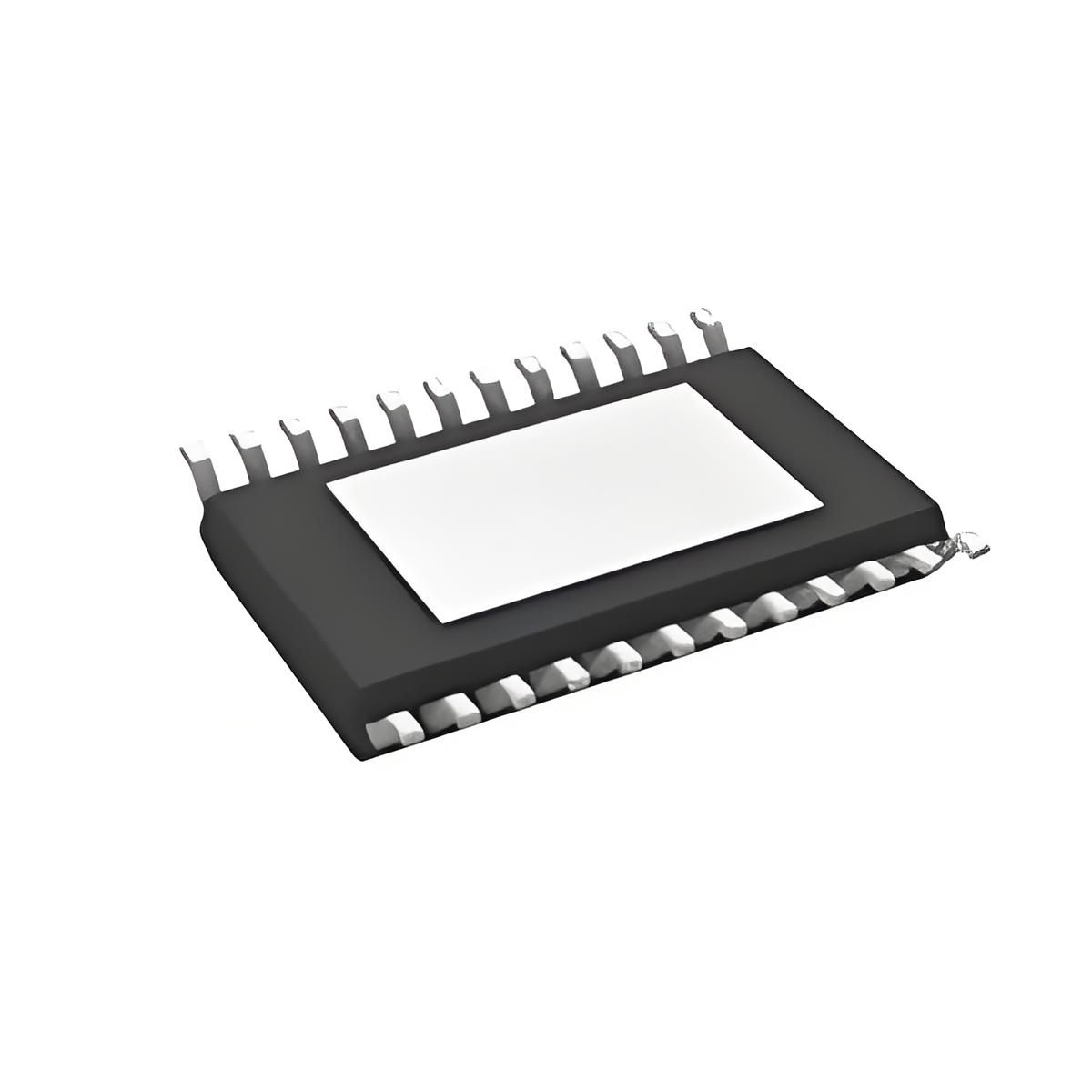

24-TSSOP (0.173, 4.40mm Width) Exposed Pad |
| Surface Mount |
YES |
| Number of Pins |
24 |
| Mass |
98.08935mg |
| Switching Frequency |
1.6MHz |
| Operating Temperature |
-40°C~85°C |
| Packaging |
Tape & Reel (TR) |
| JESD-609 Code |
e4 |
| Lead Free Code |
yes |
| Part Status |
Active |
| Moisture Sensitivity Level (MSL) |
2 (1 Year) |
| Number of Terminations |
24 |
| ECCN Code |
EAR99 |
| Terminal Finish |
Nickel/Palladium/Gold (Ni/Pd/Au) |
| Application |
Controller, TFT LCD |
| Maximum Power Dissipation |
1.32W |
| Terminal Position |
DUAL |
| Terminal Form |
Gull Wing |
| Peak Reflow Temperature (°C) |
260 |
| Number of Functions |
1 |
| Supply Voltage |
3.3V |
| Terminal Pitch |
0.65mm |
| Frequency |
2.1MHz |
| Base Part Number |
TPS65100 |
| Pin Count |
24 |
| Number of Outputs |
4 |
| Output Voltage |
3.3V |
| Maximum Output Current |
20mA |
| Input Voltage – Nom |
3.3V |
| Power Supply |
3.3V |
| Interface |
Parallel |
| Maximum Supply Voltage |
5.8V |
| Minimum Supply Voltage |
2.7V |
| Analog IC – Other Types |
Switch Capacitor Regulator |
| Power Dissipation |
3.3W |
| Quiescent Current |
700μA |
| Voltage – Output |
Multiple |
| Topology |
Boost |
| Minimum Input Voltage |
2.7V |
| Control Mode |
VOLTAGE-MODE |
| Maximum Input Voltage |
5.8V |
| Control Technology |
Pulse Width Modulation |
| Maximum Supply Current (Isup) |
0.9mA |
| Height |
1.2mm |
| Length |
7.8mm |
| Width |
4.4mm |
| Device Thickness |
1mm |
| Radiation Hardening |
None |
| RoHS Status |
ROHS3 Compliant |
| Lead Free |
Lead Free |
