| Category | Details |
|---|---|

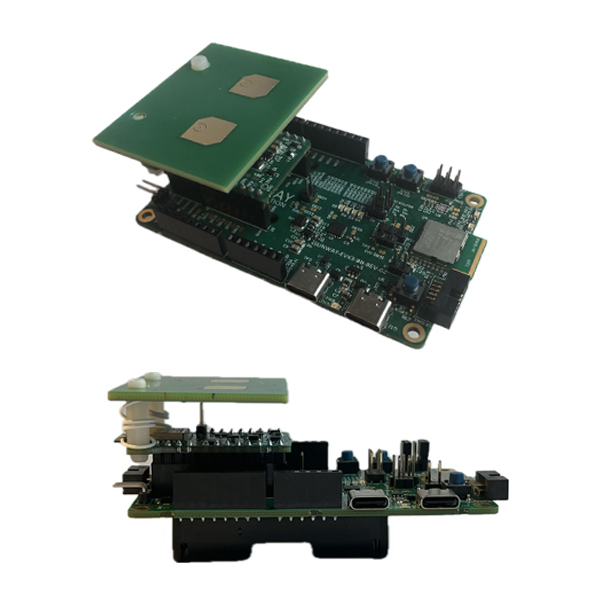

| Overview | The Sunway UWB Development Kit (SW-EVK-3) delivers everything needed to evaluate and prototype high-precision UWB ranging, angle-of-arrival and real-time-location applications. Each kit ships in a rugged protective box and includes one fully-configured devkit board (can be used as either anchor or tag), based on Sunway’s SR150 Trimension™ UWB module and a Nordic nRF52840 BLE microcontroller. Use a single SW-EVK-3 with your smartphone (e.g. NXP Trimension AR app) or PC to measure raw Two-Way-Ranging (TWR) and Phase-Difference-of-Arrival (PDoA) data. Combine two or more kits in anchor/tag configurations to demonstrate: • TWR, PDoA, DL-TDoA and UL-TDoA modes • Multi-node, multi-session ranging • 2D and 3D Real-Time Location System (RTLS) with ±10 cm accuracy |
| Specification | The SW-EVK-3 kit ships in a protective cardboard box containing: • 1× SW-EVK-3 devkit board, comprising: * Sunway SR150 UWB module on MikroBus carrier * Host MCU: Nordic nRF52840 (USB, BLE, UART interfaces) * SW-SU001 dual-patch UWB antenna |
| Product and Supply Features | • UWB Standard: IEEE 802.15.4z HRP; FiRa Consortium PHY & MAC • Ranging & RTLS: ToF, TDoA, AoA; 2D/3D RTLS (≥3 anchors for 2D, ≥4 for 3D) • Modes: DS-TWR, TWR, PDoA, DL-TDoA, UL-TDoA, multi-node, multi-session • Host Interfaces: USB-C (power & data), BLE (Nordic NUS), UART (JSON-based) • Power: USB or 3× AAA batteries (not included) • Software: PC terminal utility; Apple Nearby & Android support; no firmware coding required • Antenna: SW-SU001 dual-patch, integrated on board • Membership: FiRa Consortium, UWB Association member • Module chipset: NXP Trimension™ SR150 & SR040 Special Note: The following items are provided by e-mail upon request: • PC evaluation software (terminal utility and RTLS python app) • EVK-3 start-up guide |
