| Parameter | Value | Unit | Remarks |
|---|---|---|---|

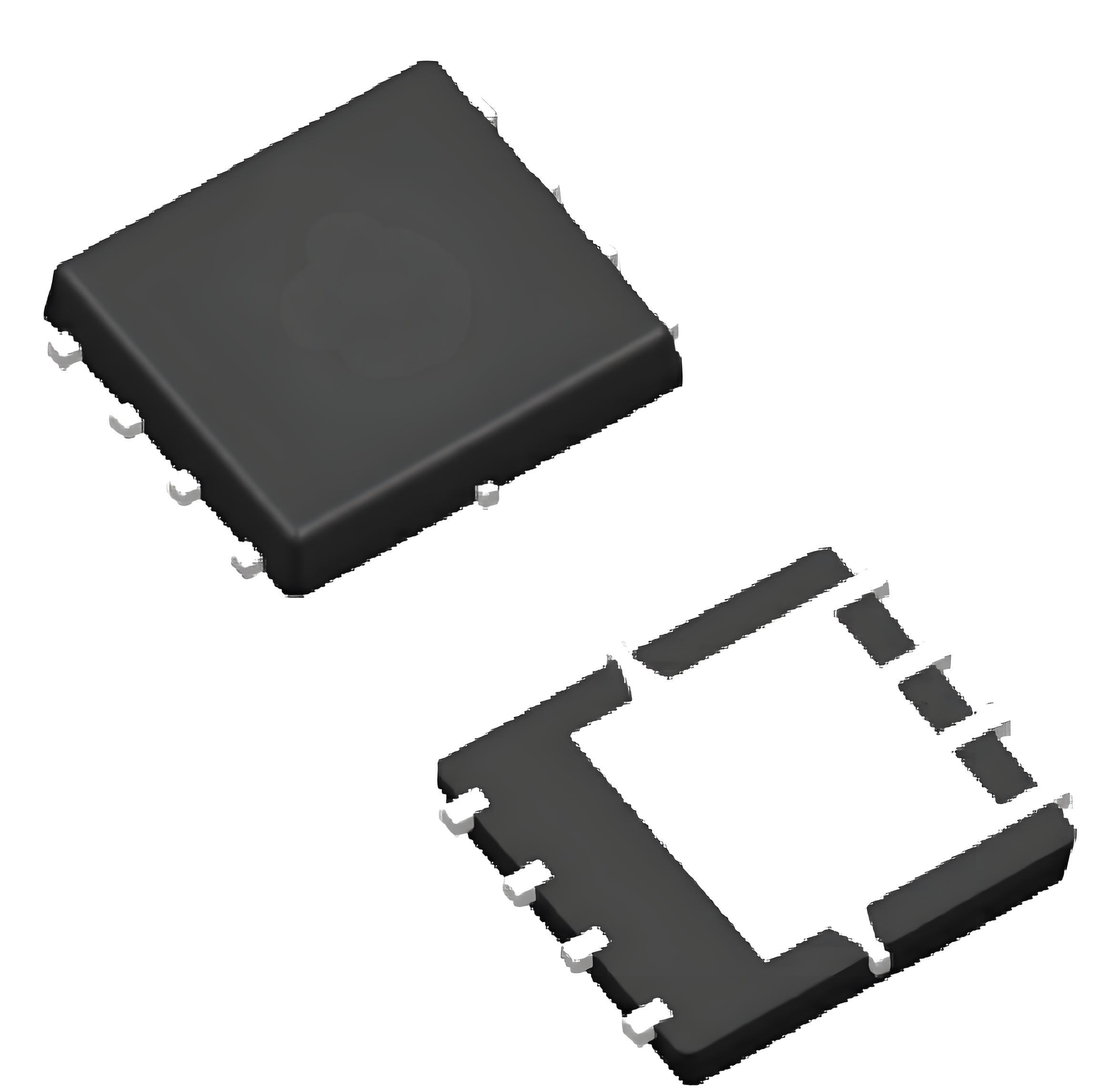

| Package Type | DFN8 (5×6) | / | Small flat package |
| Polarity | P – Channel | / | / |
| Drain – Source Voltage (VDSS) | -30 | V | Maximum Withstand Voltage |
| Gate Drive Voltage (VGS) | ±20 | V | Allowable Gate Voltage Range |
| Threshold Voltage (VGS(th)) | -1.68 | V | Typical Value |
| On – Resistance (RDS(on)) | 2.2 | mΩ | VGS = -10V |
| Maximum Drain Current (ID) | -120 | A | Maximum Continuous Current |
| Process Type | Trench | / | Provides lower on – resistance and better switching performance |
